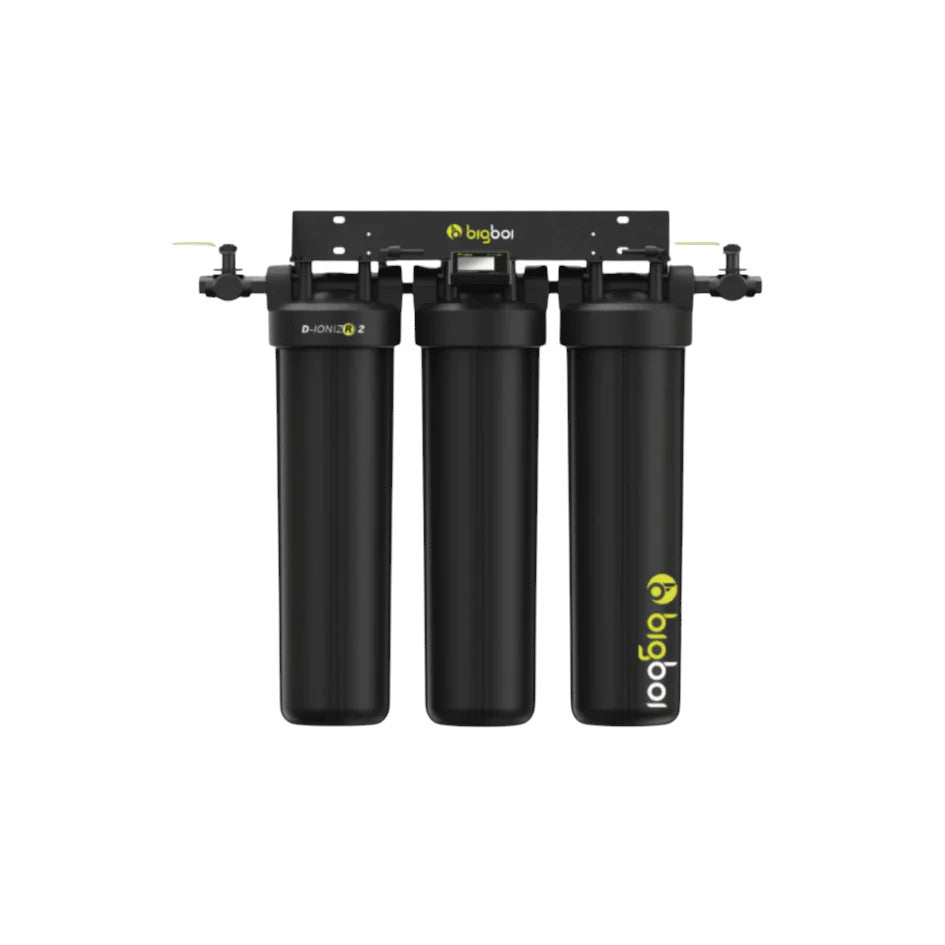

BigBoi D-IONIZR2 Water Filtration System 3 Filter Set Up with Built-in Bypass Valve & Digital TDS Meter D-IONIZR2SET MKII
BigBoi D-IONIZR2 Water Filtration System 3 Filter Set Up with Built-in Bypass Valve & Digital TDS Meter D-IONIZR2SET MKII
SKU: P-END(B) - D-IONIZR2SET(2BOX)
Couldn't load pickup availability
D-IONIZR2 WATER FILTRATION SYSTEM
3 STAGE FILTER SET UP
The D-IONIZR2 has a 3-stage filter set up. The first filter is a composite carbon filter which is designed to remove the hardness levels of your water. This also adds an extreme benefit to the D-IONIZR filter as the water flowing through it will be much cleaner and prolonging the life span of your cartridges. We have seen a 20% increase of your DI cartridge with this set up.
The 2nd & 3rd filters are deionized resin that will filter the water to 0PPM (parts per million). With a built-in digital TDS meter that will read the incoming and outgoing levels give the user all the information needed. The newly developed bypass valve allow the user to simply choose if they want to use the filter system for the complete wash cycle or just during the final rinse cycle to prolong the cartridges life span. You may choose to use the system during a complete wash cycle to see better foaming and a superior wash with deionized water. The choice is yours, at the turn of a valve.
PERFORMANCE:
One deionizer cartridge can comfortably filter up to 1200 litres of water, depending on your water's hardness level (ideally 100 TDS or lower). If you're using it with our carbon filter, you’ll get an extra 20% efficiency, giving you around 1440 litres of filtered water.
What does that mean for you? If you are using the system just for your rinse cycle, it can handle between 160 and 192 washes before needing replacement. Keep in mind that the quality of your water (how hard it is) will affect how many washes you can get from each cartridge, so results may vary.
WHAT’S NEW IN MKII MODELS:
The new MKII units now include an internal filter guide to help position the filters correctly inside the canisters. This prevents misalignment during installation, which can lead to inaccurate TDS readings or reduced filter efficiency. Every MKII unit is now thoroughly pressure tested to ensure there are no leaks or weaknesses in the manufacturing joints, giving you even more reliability straight out of the box.
PLEASE NOTE: Parts included to complete set up- Tank wrench for tank installation, tread tape, water in-out fitting, spare tank O-Rings, O-Ring lubrication & valve oil. Bigboi front tank sticker!!
The Hard Water Filtration System Designed For Detailers
No More Water Spots
Hard water is every detailer’s nightmare. Its mineral-rich composition leaves stubborn spots and streaks on your vehicle, dulling your paint and ruining that pristine, glossy finish you’ve worked so hard to achieve. With the bigboi D-IONIZR, you can say goodbye to water spots and hello to flawless results, every time.

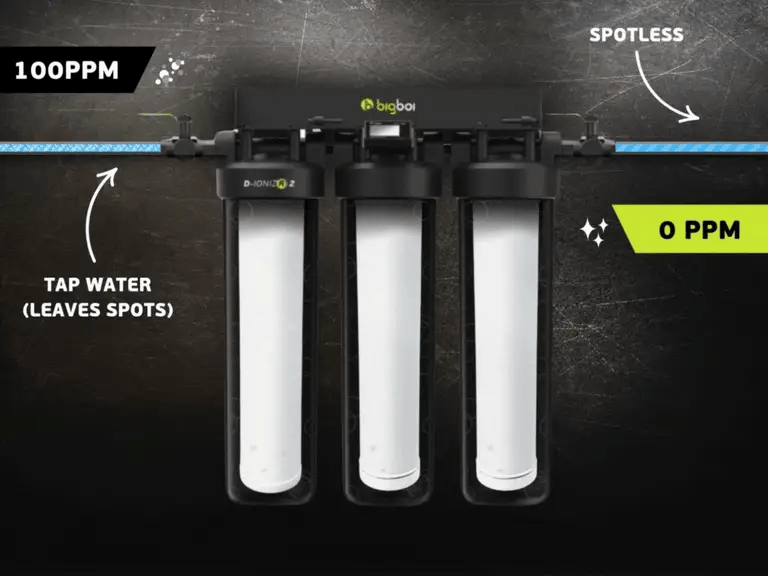

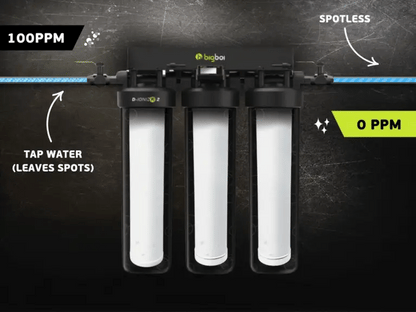

HOW IT WORKS
The D-IONIZR uses a two-stage filtration process to deliver perfectly pure, 0PPM water for a spotless, streak-free finish. First, the carbon filter removes impurities and reduces water hardness, ensuring the resin filters last longer and work more efficiently. Next, the two resin deioniser filters eliminate all remaining minerals and contaminants, leaving nothing behind but pure, deionised water. The result? Crystal-clear water that helps you achieve a flawless clean, every time.
The Perfect Rinse
The bigboi D-IONIZR filters hard water down to 0 PPM (parts per million), removing the minerals that cause spotting and streaking. Equipped with a two-stage filtration system, it combines a composite carbon filter to soften water with a deionized resin filter for ultimate purity. The result? A streak-free, spot-free finish that elevates your detailing game.

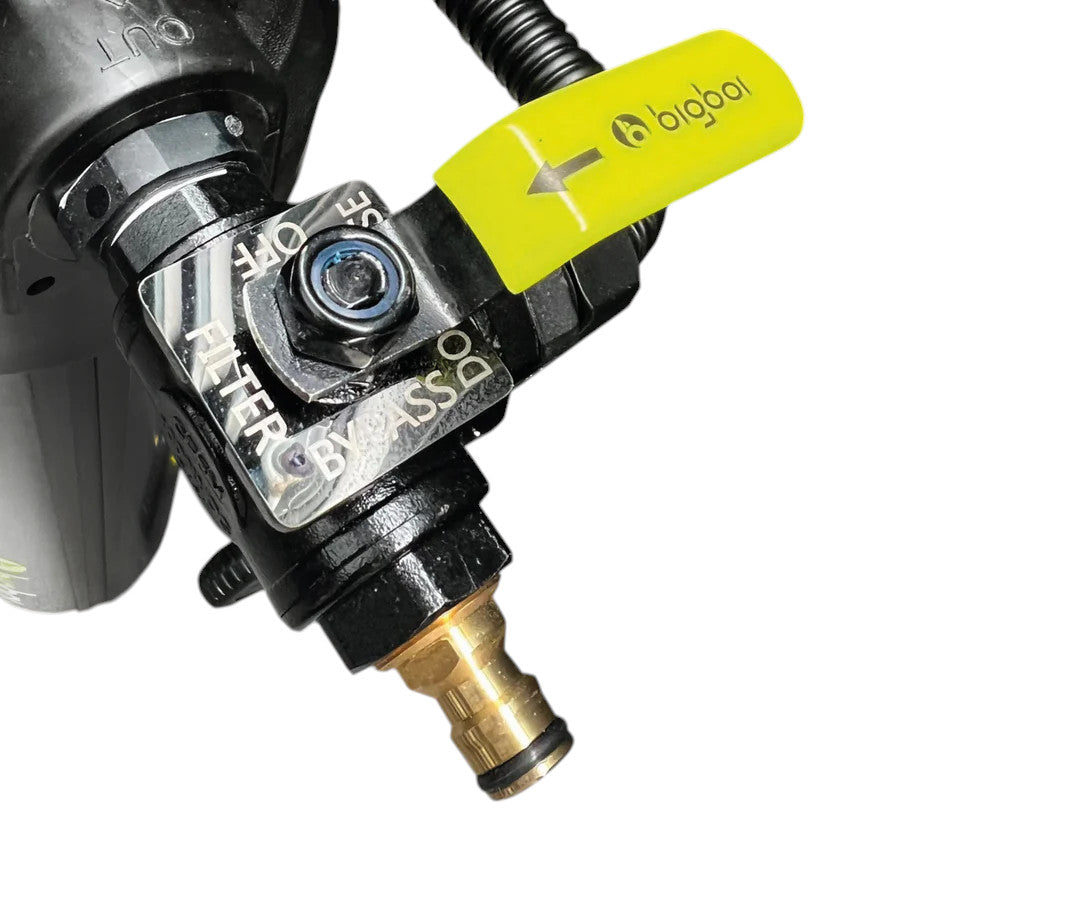

In-Built Bypass Valve
With its innovative bypass valve, the D-IONIZR lets you control when to use the filter system. Use deionized water only during the rinse cycle to extend the life of your cartridges, or run it through the full wash for an even better clean. This flexibility means fewer cartridge replacements and more efficient washing, so you can focus on achieving flawless results.
Precision-Fitted Filters
Unlike other systems, the D-IONIZR comes with solid filter guides that ensure perfect alignment of the cartridges every time. This eliminates common issues like blow-by and leaks that can reduce filtration performance. With a secure, efficient seal, you get maximum deionisation with every rinse, making the D-IONIZR one of the most reliable and high-performing water filtration systems available for detailers today.
Description
At bigboi, we know that achieving a flawless, spot-free finish is the ultimate goal for any detailer. That’s why we created the bigboi D-IONIZR, a professional-grade water filtration system designed specifically for car enthusiasts and detailing professionals. Engineered to tackle the challenges of hard water, the D-IONIZR eliminates water spots and streaks, ensuring a spotless rinse every time.
The D-IONIZR features a dual-stage filtration system. The first stage is a composite carbon filter that reduces water hardness and removes impurities, extending the life of the second-stage deionized resin filter. This resin filter reduces water to 0PPM (parts per million), giving you pure water for a spotless finish. Equipped with a built-in digital TDS meter, you can monitor water purity at a glance, while the innovative bypass valve allows you to preserve filter life by using the system only when needed.
With one cartridge capable of filtering up to 1440 liters of water when paired with the carbon filter, the D-IONIZR is built for efficiency and longevity. Whether you use it during the full wash cycle or just the final rinse, this system enhances foaming, ensures a streak-free finish, and elevates your detailing game. With its durable build, easy setup, and exceptional performance, the bigboi D-IONIZR is the ultimate tool for achieving professional-grade results, every time.
Features & Benefits
- 2-Stage Filtration: Composite carbon and deionized resin filters remove hard water minerals for a spotless finish.
- Spot-Free Rinse: Filters water to 0 PPM (parts per million) for streak-free, flawless results.
- Extended Cartridge Life: Carbon pre-filter increases cartridge lifespan by up to 20%.

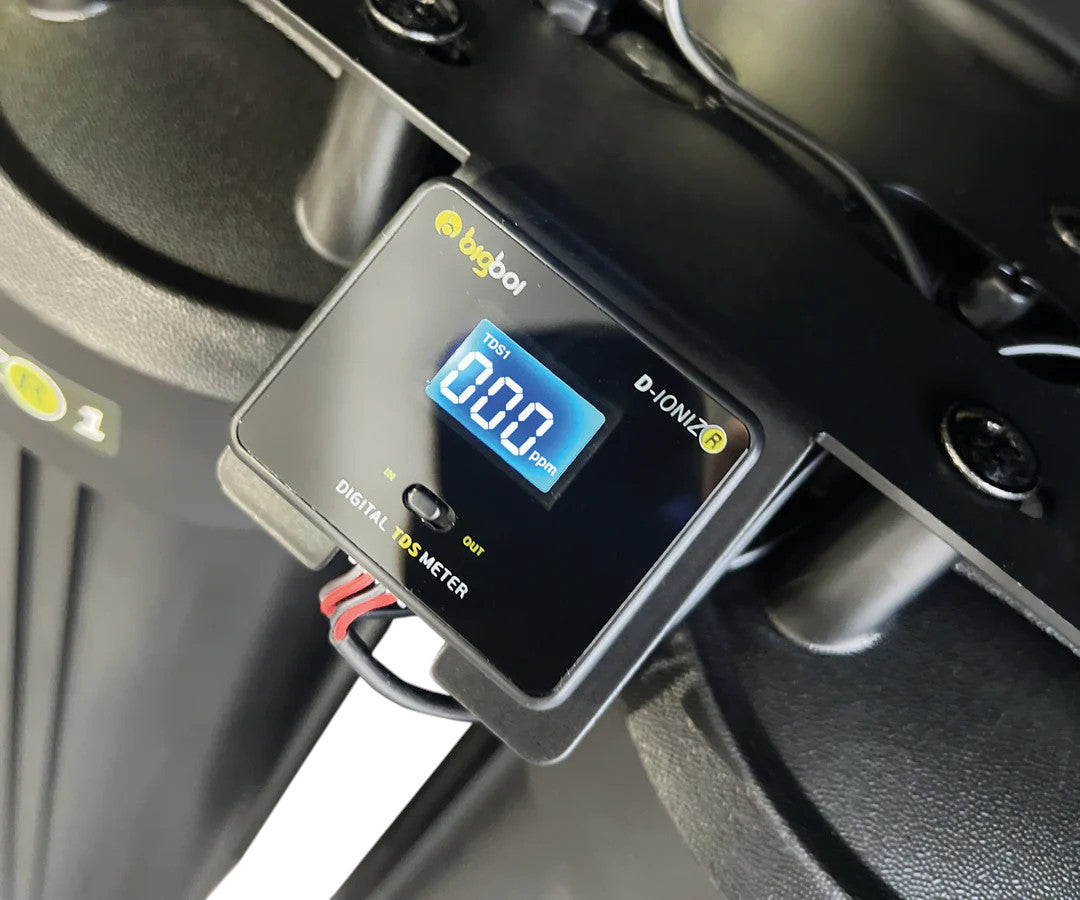

- Built-In TDS Meter: Real-time monitoring of water purity with clear incoming and outgoing readings.
- Bypass Valve: Control filtration usage—use for rinse cycles only to extend cartridge life.
- High Capacity: Filters up to 1200-1440 litres per cartridge, depending on water hardness.
- Superior Detailing Results: Boosts foam performance and ensures a cleaner, more efficient wash.
- Durable Construction: Built to withstand frequent use in professional and enthusiast settings.
- Easy Maintenance: Includes tools and parts for setup, maintenance, and replacement.
- Compact Design: Fits seamlessly into any detailing setup without taking up excess space.
Technical Specifications
- Filtration Stages: 2-stage system (Composite Carbon + Deionized Resin)
- Water Purity: Filters to 0 PPM for spotless rinsing
- Flow Rate: Up to 9.5 LPM
- Cartridge Capacity: Filters 1200-1440 litres (dependent on water hardness)
- Bypass Valve: Included for filtration control
- TDS Meter: Built-in digital reader (in/out water purity monitoring)
- Tank Dimensions: 50 x 15 x 15 cm (per tank)

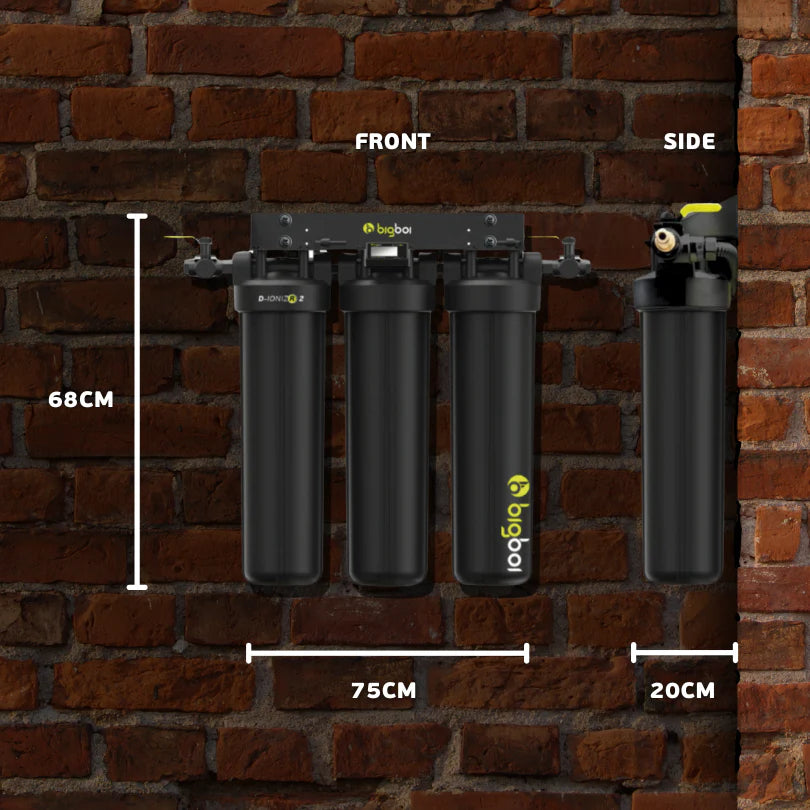

- Overall Dimensions: 68cmH x 75cmW x 20cmD (mounted)
- Weight: 38 kg (full system with cartridges)
- Operating Temperature: Works with cold water up to 40°C

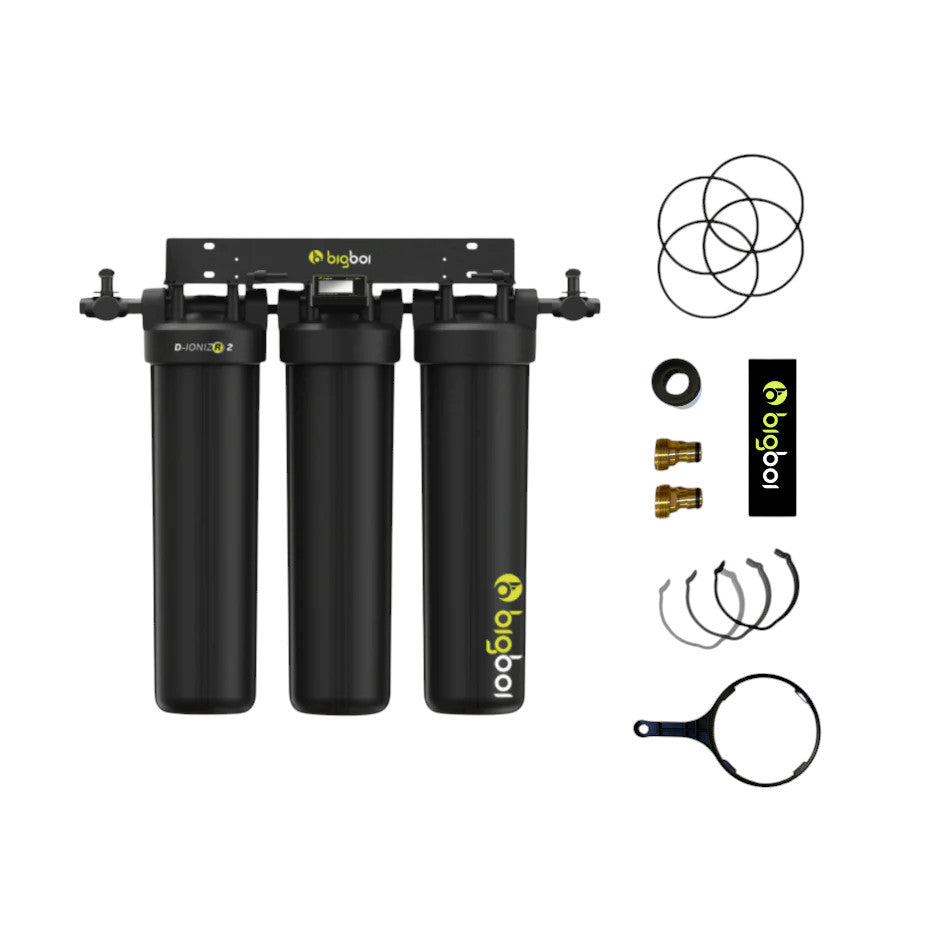

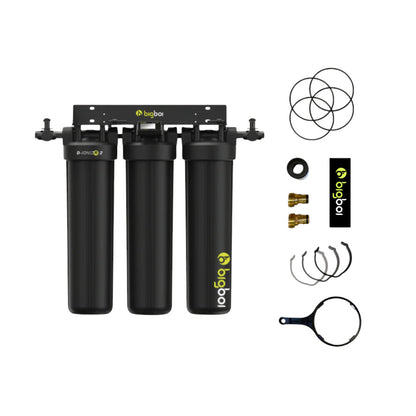

What You Get
- 1 x Top mount tank housing
- Built-in bypass system for filtration control
- Built-in digital TDS reader for precise water purity monitoring (in/out readings)
- 3 x black filter tanks
- 1 x 20-inch Composite Carbon filter
- 2 x 20-inch Deionized resin filter
Accessories Included:
- Tank wrench for easy filter installation
- Teflon tape for secure fittings
- Water in/out fittings
- Spare tank O-rings
- 3 x Filter Guides
- O-ring lubrication and valve oil
- bigboi front tank sticker to complete your setup
